SERIES #DM30

• ISO 5211 Direct Mount
• 2-Piece Full Port NPT
• 1000 W.O.G.
• 316
• Size 1/2" to 3"
• Temp: -20° F to 450° F
• Locking Handle Standard

Features & Benefits

• Economical 2-Piece Design

• Full Port

        Full port construction improves flow characteristics for greater         process efficiencies.

• ISO 5211 Direct Mounting Pad

        Provides for precise shaft alignment and eliminates the need           for brackets and couplings.

• Adjustable Live Loaded Stem

• Investment Cast

        Improves dimensional control and reduces porosity.

• Locking Handle
  Enables plant personnel to secure valve in open or closed position when manually operated.

Pressure & Temperature Chart

• Temperature Range (RTFE) -20°F to 450°F

• Maximum working pressure:

       1000 W.O.G

• Applicable standards:

       Test and Inspection API 598

        ANSI/ASME B16. 11

        ISO 5211

        MSS SP25, SP72

Operating/Test Conditions

Schematic Diagram

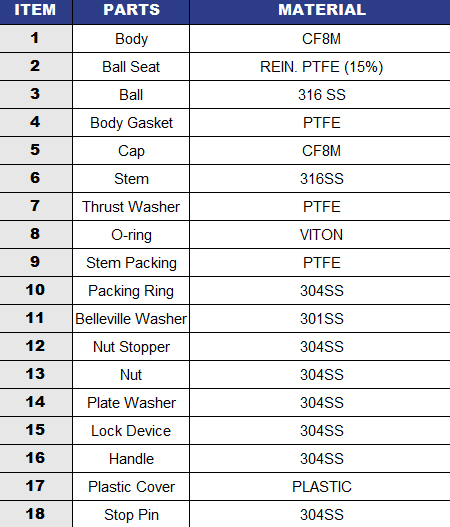

Materials & Measurements

Full PDF Cut Sheet

• Economical 2-Piece Design

• Full Port

        Full port construction improves flow characteristics for greater process efficiencies.

• ISO 5211 Direct Mounting Pad

        Provides for precise shaft alignment and eliminates the need for brackets and couplings.

• Adjustable Live Loaded Stem

• Investment Cast

        Improves dimensional control and reduces porosity.

• Locking Handle
  Enables plant personnel to secure valve in open or closed position when manually operated.
