SERIES #FS50-Fire Safe

• API 607 5th Edition Tested & Certified
• 2-Piece Full Port
• ANSI 150 Flanged End
• 316 / WCB
• Size 1/2" to 6"
• Temp: -20° F to 450° F

Features & Benefits

• Full Port Design

        Improves flow characteristics for greater process efficiencies.

• Blow-out Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service.

• Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated

• Corrosion Resistant
  Made of 316 Stainless Steel (A351 GR.CF8M)

• Investment Cast

        Improves dimensional control and reduces porosity.

• ISO 5211 Mounting Pad

• Fire Safe Design

• API 607 5th Edition Tested & Certified

Pressure & Temperature Chart

• Temperature Range (RTFE) -20°F to 450°F

• Maximum working pressure:

        ANSI 150: 275 PSI WOG @100 F

        ANSI 300: 720 PSI WOG @100 F

• All valves are shell and seat tested to ANSI/ASME B16-34 and APE 598

• Face to Face ANSI B16-10

Operating/Test Conditions

Schematic Diagram

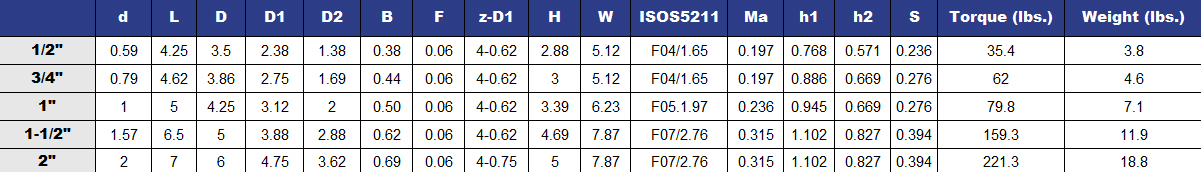

Materials & Measurements

Options

• Carbon Steel ASTM A216-WCB

• Stainless Steel ASTM A351-316

• Pneumatic or Electric Automation

• Stem Extensions

• ANSI 300 Flanged

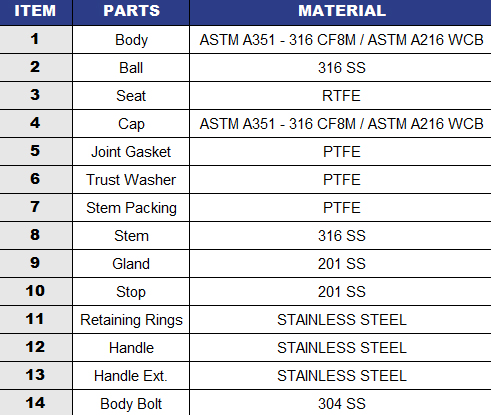

Materials & Measurements

Schematic Diagram

Full PDF Cut Sheet

• Full Port Design

        Improves flow characteristics for greater process efficiencies.

• Blow-out Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service.

• Locking Handle

        Enables plant personnel to secure valve in open or closed position when manually operated

• Corrosion Resistant
  Made of 316 Stainless Steel (A351 GR.CF8M)

• Investment Cast

        Improves dimensional control and reduces porosity.

• ISO 5211 Mounting Pad

• Fire Safe Design

• API 607 5th Edition Tested & Certified
